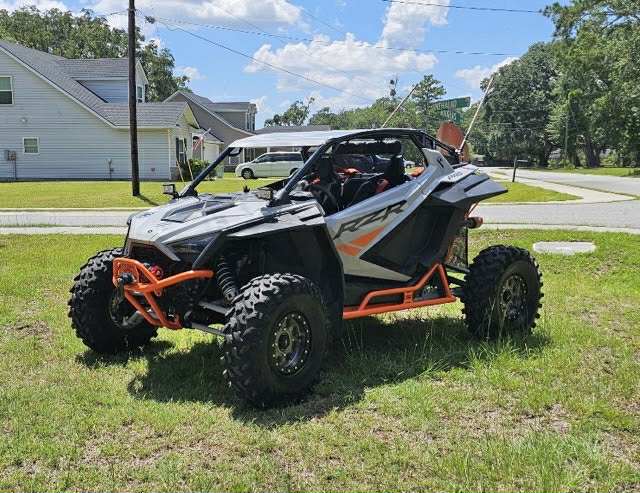

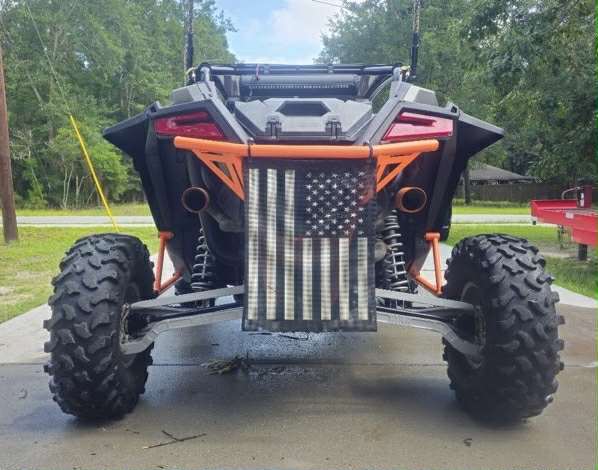

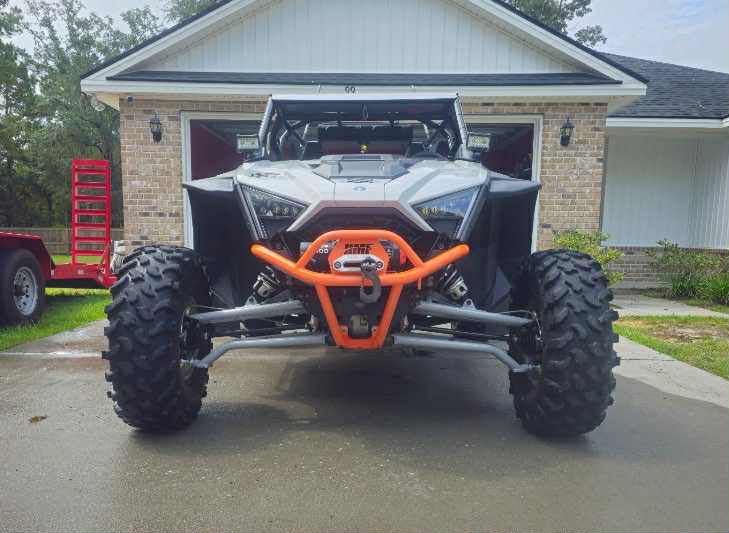

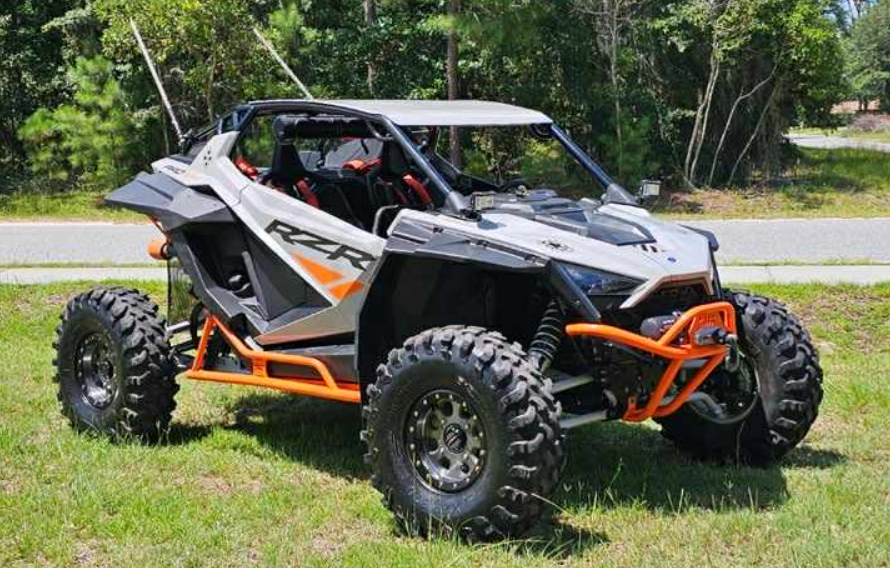

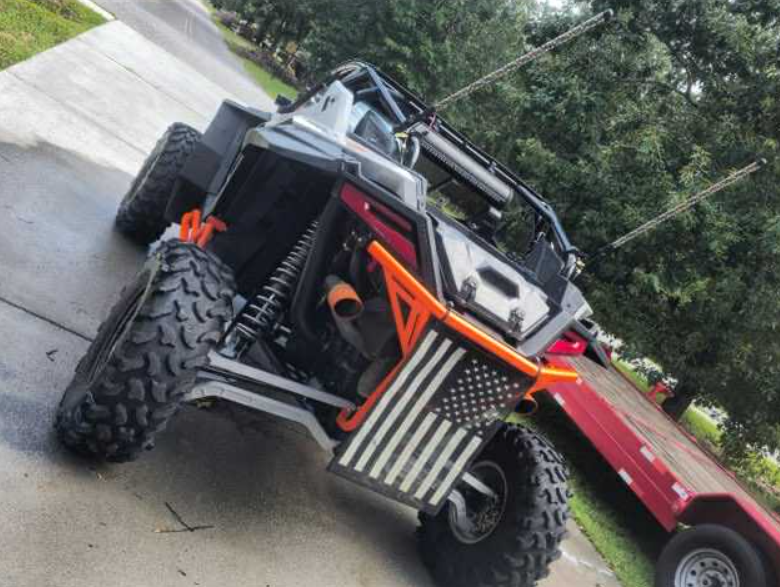

ORB Fabrication – Polaris Pro XP Long Travel Kit (Options)

ORB Fabrication – Long Travel Kit +8″ (4″ each side)
Kit includes:
*Ball joint upper a arms
*Adjustable ball joint lower a arm
*Trailing arms
*HD Billet radius set
*Tie rods
*Front break lines

***Turbo s axles and hubs are required***

OPTIONS
*Powder Coating*
*Forward A-Arms
*Ball Joints
*Bushings
*Turbo S Hubs
*Turbo S Axles
*Spring Kits
*Limit Straps

POWDER COATING
Raw, Stock Polaris colors, or call/email for custom colors.
sales.xitoffroad@gmail.com

FORWARD A-ARMS
2″ Forward A-Arms with Ball Joint Carriers. LIFETIME WARRANTY

BALL JOINTS – SET OF 4

• Keller Ball Joints - Click to view product
  *4340 hardened chromoly steel construction
  *Two-piece threaded design doesn’t require a snap ring
  *Easily adjustable, rebuildable, and greaseable
  *Robust boot retaining ring prevents water intrusion
• Super Duty 300M Ball Joint - Click to view product
  *For the hardcore rider.
  *Super ATV’s strongest ball joint on the market is 2.25x stronger than stock.
  *Can withstand 29,000 lbs of force.
  *Stud Thicker Than Stock
  *Stronger Than Stock
  *Greaseable
  *Serviceable
  300M grade steel is the strongest ball joint material on the market. We took that material and combined it with our superior design engineering to make the strongest stud possible. That means minimal narrowing at the neck and an adjustable stud. At 2.25x stronger than stock, you can’t buy a stronger ball joint than SuperATV’s super duty 300M ball joint.
• Super ATV Standard Duty Ball Joint
  *For the casual rider.
  *Our Standard Duty Ball Joint is an OEM replacement.
  *Can withstand 13,000 lbs of force.
  *Stronger Than Stock
  *Stud Thicker Than Stock
• Demon HD Ball Joints
  *Entire ball joint made up of 4340 Chromoly steel
  *Greaseable & Serviceable with reverse flanged design for upper ball joints
  *Dual heat treated to increase strength
  *2 times stronger than OEM
  *Wear adjustable and reinforced stub design resulting in longer life span

BUSHINGS – FULL SET

• Super ATV Bushing
  *Made of ultra-tough UHMW
  *Self-lubricating
  *Low wear characteristics
  Kit Includes:
  (12) Bushings
  (4) Replacement steel sleeves
  (16) O-ring wear plates
  (4) Internal snap rings
• Titan Pro XP Bushing kit
  *HD Replacement Bushings for Front A-Arms
  *Self lubricating for superior wear resistance
  *Highest wear resistant thermoplastic available
  *Extended part life
  *Excellent Cost vs. Performance value
  *Improved performance
• Garage Product Bushing
  *oil filled UHMW sealed bushings
  *Pins ,spacers and end caps
  *All steel components are machined from 4140, heat treated steel or nickel or hard nickel plated, for extreme wear resistance.
  *Backed by our lifetime guarantee

TURBO S HUBS – SET OF 4

• Polaris OEM Turbo S Hubs
  *5141353-067

AXLES – SET OF 4

• Demon Powersports HD Axles
  *15%-20% increase in diameter compared to the regular axle
  *Inner cage made up of 4340 Chromoly steel
  *Dual heat treated high strength Chromoly steel shaft
  *Thermoplastic polyester elastomer (TPEE) Boot
  *10%-15% increase in CV joint size compared to regular joints
  *Wider articulation angles
  *Dual plunge design prevents the axle from binding
  *Packed with high load molybdenum grease Precision CNC machined
  *1-year limited warranty

• Super ATV Rhino 2.0 Axles
  *25% stronger than stock
  *Made with 4340 chromoly steel
  *Proprietary heat treatment for superior strength and longevity
  *Operates at high CV angles
  *A massive 4mm increase in shaft size
  *Field and lab tested for extreme strength and endurance
  *Industry-leading 18-month warranty
• Super ATV X300 Axles
  *300M alloy steel shaft
  *CV components made of 300M and 4340 alloy steel
  *Maximized CV, spider, and cage size for superior strength
  *Flexshaft™ technology absorbs impact
  *Reduces strain on CVs and drivetrain components
  *CVs packed with proprietary high-temp grease
  *Backed by a 3-Year Warranty, the industry’s best axle warranty

• Demon Powersports Extreme HD Race Spec Axles
  *Entire Axle made up of 4340 Chromoly Steel
  *Re-Engineered Cage Design to Enhance Durability
  *20 – 30% Larger components compare to HD
  *Shaft is micro-polished and chrome plated
  *All components of axles dual heat-treated to increase strength
  *Unique boot design depending on riding terrain for heat reduction
  *High-quality lithium-based grease containing molybdenum with a high drop point
  *Larger swing angles up to 47 degrees
  *Backed with a 2-years limited warranty
  *Built for Extreme riders and machines with more power
  *Our Strongest Axles To Date
• Nitro Gear Axles Long Travel Kit Axle for PRO XP
  *30% Stronger than stock
  *Constructed from 4340 ultra-high strength steel
  *Heat treated CV components for maximum durability
  *100% Bolt-on – Fully assembled for easy Iinstall
  *1-Year limited warranty
  *Designed for Plus 4″ Long travel kits such as HCR and ORB FaB
  ***Will not require Turbo S Hubs***

SPRING KIT

• MTS Off-road Dual Rate Spring
  *8 High Quality Springs
  *4 Billet crossover rings
  *4 Spring Dividers & Adapters
  *Lifetime warranty
  *Manufactured in the USA

• The Zbroz racing Dual Rate Spring
  *Shocks will deliver Race-Inspired Performance and Control for Mountain Trail, Rock Crawling, and Desert/Dune rally action. This is the best and most cost-effective spring kit available for DIY installation!


LIMIT STRAPS

• Sandcraft RCR Limit Strap Kit –
  SANDCRAFT Limit straps protect your axles and suspension components by preventing the over extension of your suspension at full droop. These straps cushion the drop and protect the shocks, CVs, axles and steering components from damage caused by over extension. Made from the highest quality military-grade webbing, triple-sewn with heat-treated tabs.
  INCLUDES
  (2) Front Limit Straps
  (2) Rear Limit Straps
  (8) Class 12.9 Zinc Coated Shock Mount Bolts
  *Individualized 6061 Aluminum Spacers
  (4) Velcro tethers
• MTS OFFROAD Limit Strap Kit –
  Limit straps are designed to protect your machine when the shocks are working hard. They help protect your axles & suspension components by limiting the overall range of motion at full droop. Made from the highest quality craftsmanship and materials
  (2) Front Limit Straps
  (2) Rear Limit Straps
  *Individualized 6061 Aluminum Spacers
  (4) Velcro tethers
