HCR Long-Travel Suspension - Kawasaki KRX 1000 2/4 Seat

KRX 1000 HCR Long Travel Suspension

Features

72" Width compared to 68" from factory

Adds 10 pounds—roughly 2.5 lbs per corner

Laser-cut construction for precise fit and finish

CNC'd chromoly mounting points for increased integrity

HCR custom alloy boasts 30% more strength than chromoly

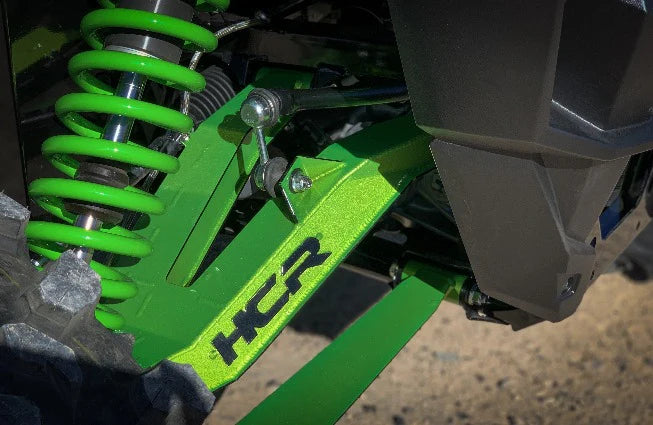

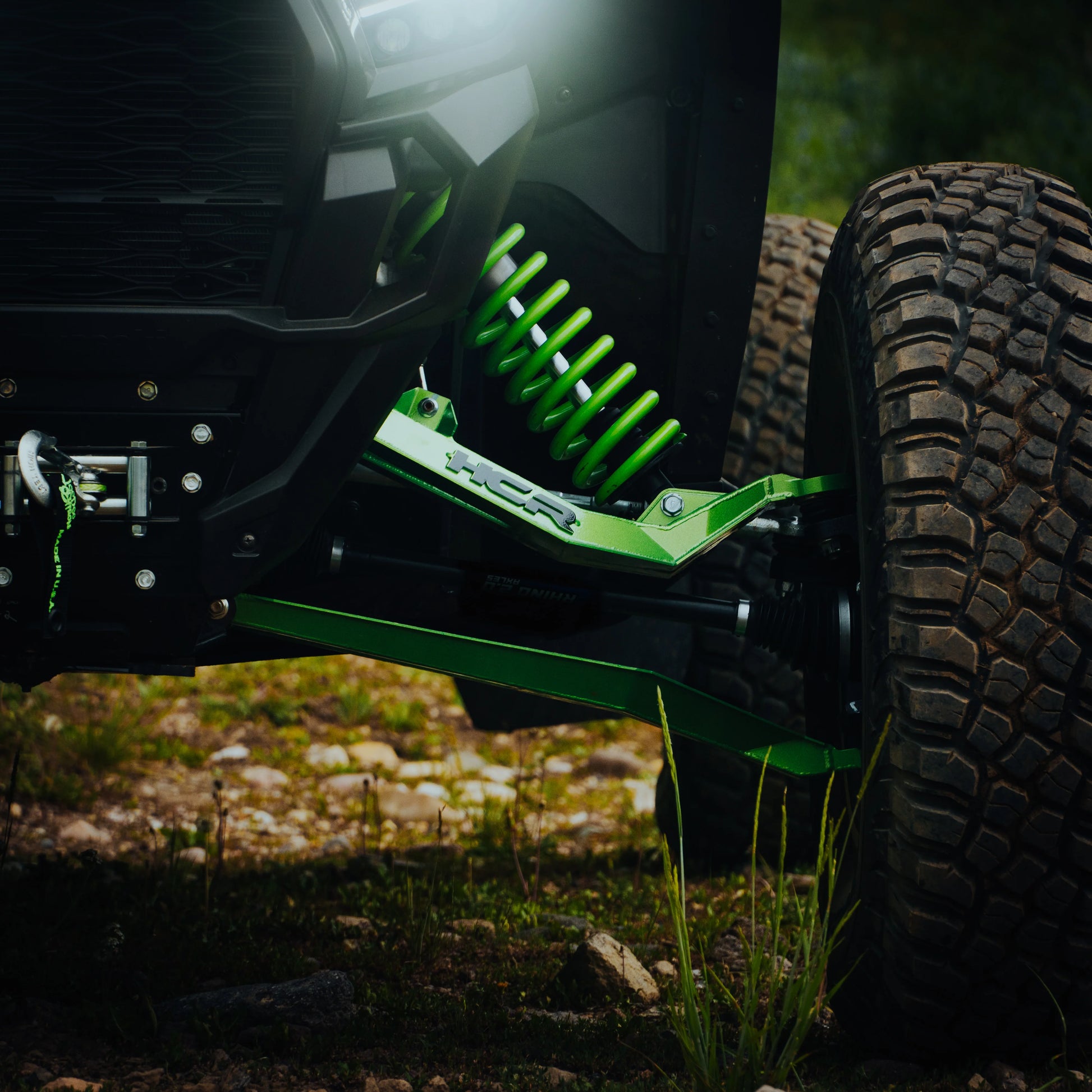

High-clearance boxed front A-arm design

Each piece is TIG welded by hand for strength and aesthetics

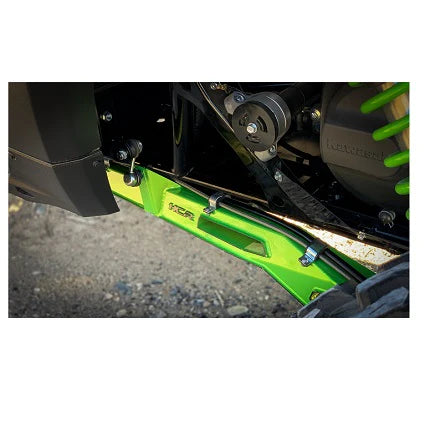

High-Clearance Rear Trailing Arms provide an increase of 1.75” in ground clearance

100% proudly made in the U.S.A

Add clearance, strength, and appeal to your KRX 1000 with the HCR Long-Travel Kit. This true boxed kit follows the HCR portfolio while adding to the aggressive stance of the KRX 1000, making the all-new KRX the ULTIMATE Rock Crawling SXS!

Rhino 2.0 Axles:

Uses 4340 chromoly steel bars, CVs, and components

Trusted by thousands of riders

18-month warranty

HCR Radius Rods

This suspension upgrade includes HCR’s high-clearance billet aluminum radius rods. Their impressive strength is ideal for performance applications.

7075 billet aluminum construction

Black anodized finish

Bolt-on replacement

Kit Includes:

4 Front A-arms

2 Rear Trailing Arms

6 Billet Aluminum High Clearance Radius Links - Anodized Black

4 Rhino 2.0 Axles

Hardware

Fitment:

Kawasaki Teryx KRX 1000 : 2020-2025

Kawasaki Teryx KRX 4 1000 : 2023-2025

NOTES:

Reuses factory shocks

Estimated install time: 8 hours

HCR kits are made to order. Quality takes time

*Front Limit straps are recommended when using Rhino 2.0 axles due to larger diameter axle bar*
